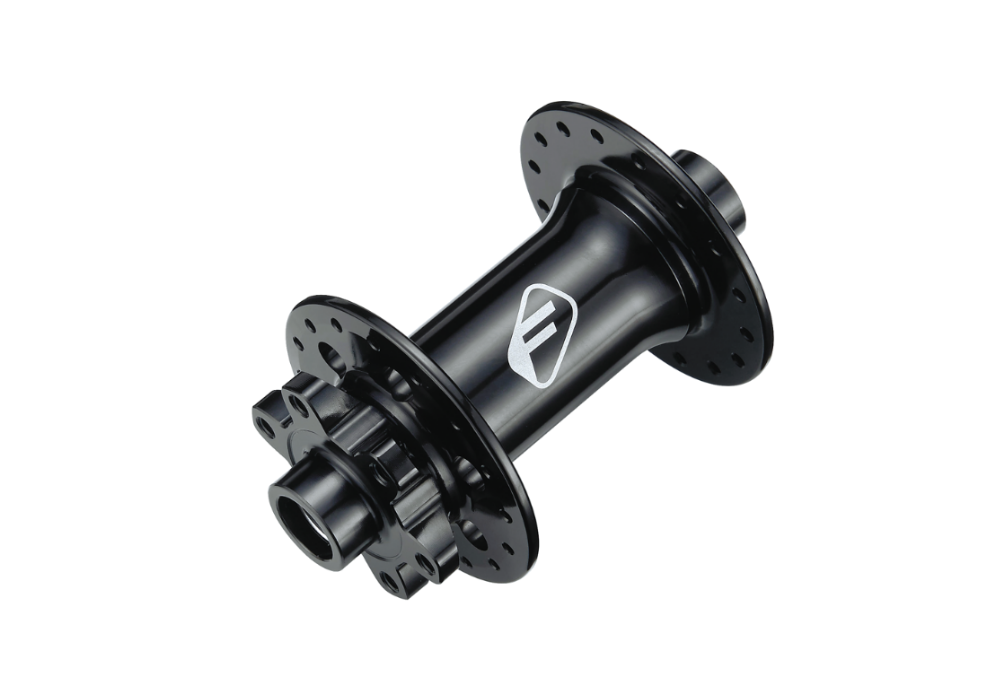

THRU AXLE SERIES 6 BOLT FLANGE TYPE

  •   NON BOOST
      DC-51 DC-71
    SPECIFICATION
    F/R F F
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 100MM
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 260G 180G




    DC-51
    DC-71

  •   BOOST
      DC-511 DC-711
    SPECIFICATION
    F/R F F
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 110MM 110MM
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 260G 180G




    DC-511
    DC-711

  •   NON BOOST
      DHT-142 DHT-14211
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 390G 365G




    DHT-142
    DHT-14211

  •   BOOST
      DHT-148S DHT-1481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 403G 360G




    DHT-148S
    DHT-1481

  •   NON BOOST
      DCL-360 DCL-361
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 360G 322G




    DCL-360
    DCL-361

  •   BOOST
      DCL-348S DCL-3482
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 365G 327G




    DCL-348S
    DCL-3482

  •   NON BOOST
      DCL-300 DCL-301
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 300G 280G




    DCL-300
    DCL-301

  •   BOOST
      DCL-348A DCL-3481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 305G 285G




    DCL-348A
    DCL-3481

  •   NON BOOST
      DC-3910 DC-3911
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 360G 345G




    DC-3910
    DC-3911

  •   BOOST
      DC-3948 DC-39481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 262G 355G




    DC-3948
    DC-39481

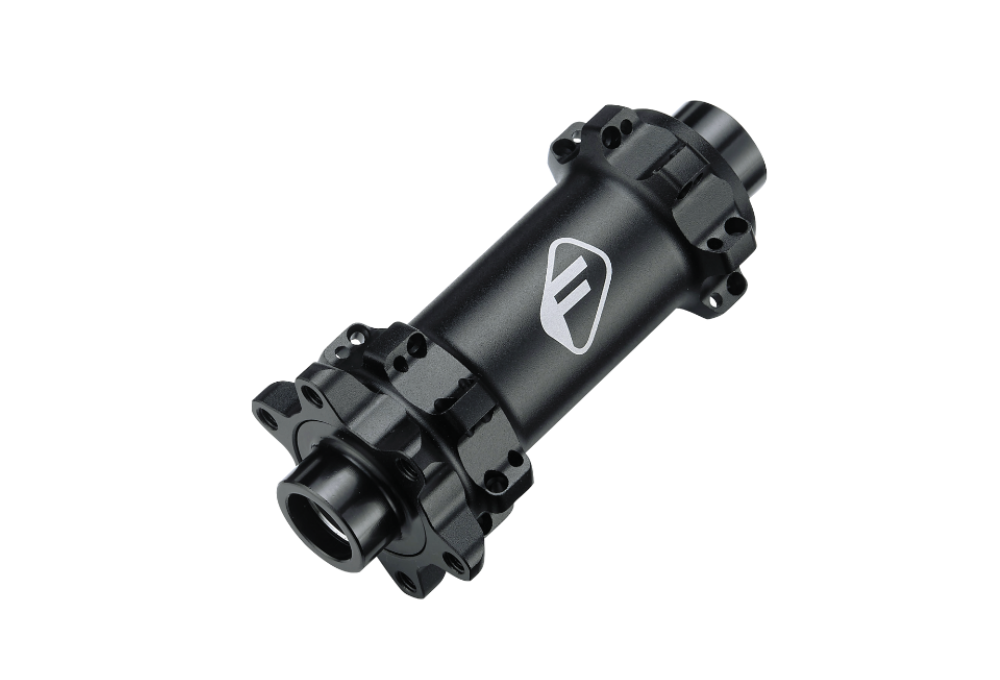

THRU AXLE SERIES 6 BOLT STRAIGHT PULL

  •   NON BOOST
      TD-71 TD-81T
    SPECIFICATION
    F/R F F
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 100MM 100M
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 140G 138G




    TD-71
    TD-81T

  •   NON BOOST
      TD-711
    SPECIFICATION
    F/R F
    HOLE COUNT 28H
    GAUGE 14
    O.L.D. 110MM
    AXLE LENGTH N/A
    QR 133G
    WEIGHT




    TD-711

  •   BOOST
      TD-72S
    SPECIFICATION
    F/R R
    HOLE COUNT 28H
    GAUGE 14
    O.L.D. 142MM
    AXLE LENGTH Ø12
    QR N/A
    WEIGHT 350G




    TD-72S

  •   BOOST
      TD-148S TD-1481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 310G 290G




    TD-148S
    TD-1481

  •   NON BOOST
      TD3910 TD-3911
    SPECIFICATION
    F/R R R
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 327G 320G




    TD3910
    TD-3911

  •   BOOST
      TD-3948 TD-39481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 148MM 149MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    QR WEIGHT 340G 333G




    TD-3948
    TD-39481

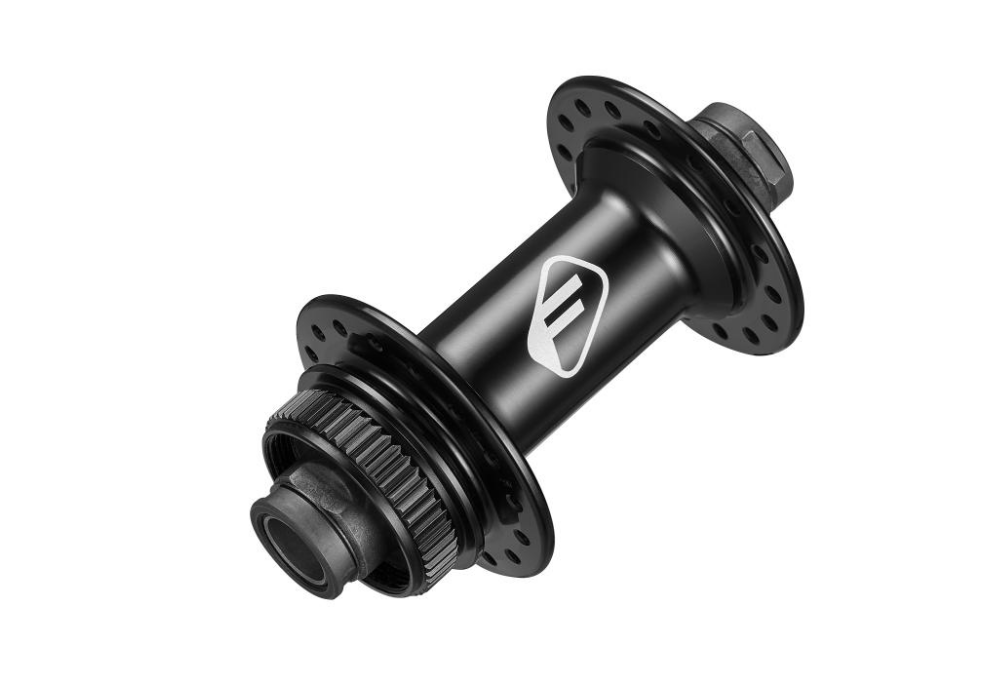

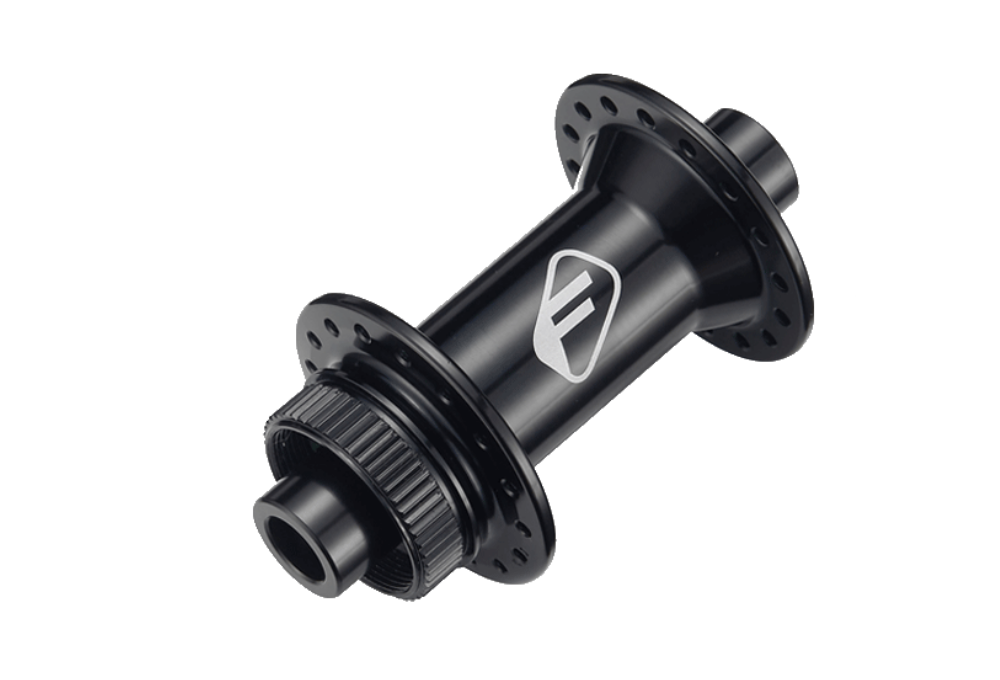

THRU AXLE SERIES CENTER LOCK FLANGE TYPE

  •   NON BOOST | BOOST
      CL-71 CL811
    SPECIFICATION
    F/R F F
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 110MM
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 135G 140G




    CL-71
    CL811

  •   NON BOOST | BOOST
      CL-71 CL-811
    SPECIFICATION
    F/R F F
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 110MM
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 135G 140G




    CL-71
    CL-811

  •   NON BOOST
      CL-142S CL-14211
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 355G 326G




    CL-142S
    CL-14211

  •   BOOST
      CL-148S CL-1481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 360G 295G




    CL-148S
    CL-1481

THRU AXLE SERIES CENTER LOCK STRAIGHT PULL

  •   NON BOOST | BOOST
      TC-71 TC-711
    SPECIFICATION
    F/R F F
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 100MM 110MM
    AXLE LENGTH Ø15 Ø15
    QR N/A N/A
    WEIGHT 120G 125G




    TC-71
    TC-711

  •   NON BOOST
      TC-72S TC-7211
    SPECIFICATION
    F/R R R
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 142MM 142MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 324G 298G




    TC-72S
    TC-7211

  •   BOOST
      TC-148S TC-1481
    SPECIFICATION
    F/R R R
    HOLE COUNT 28H 28H
    GAUGE 14 14
    O.L.D. 148MM 148MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 330G 295G




    TC-148S
    TC-1481

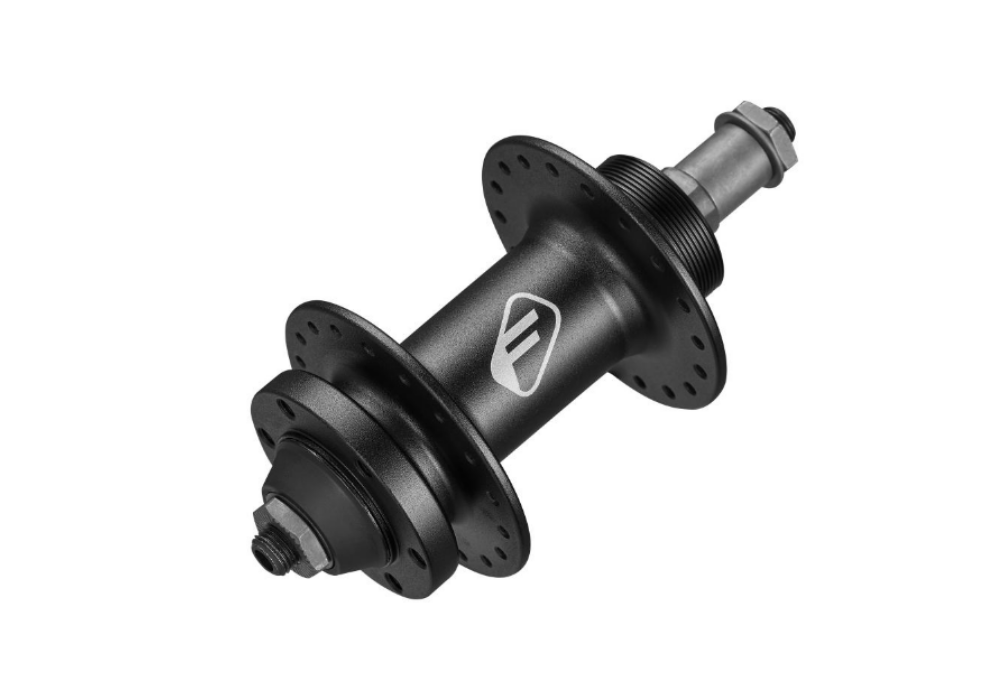

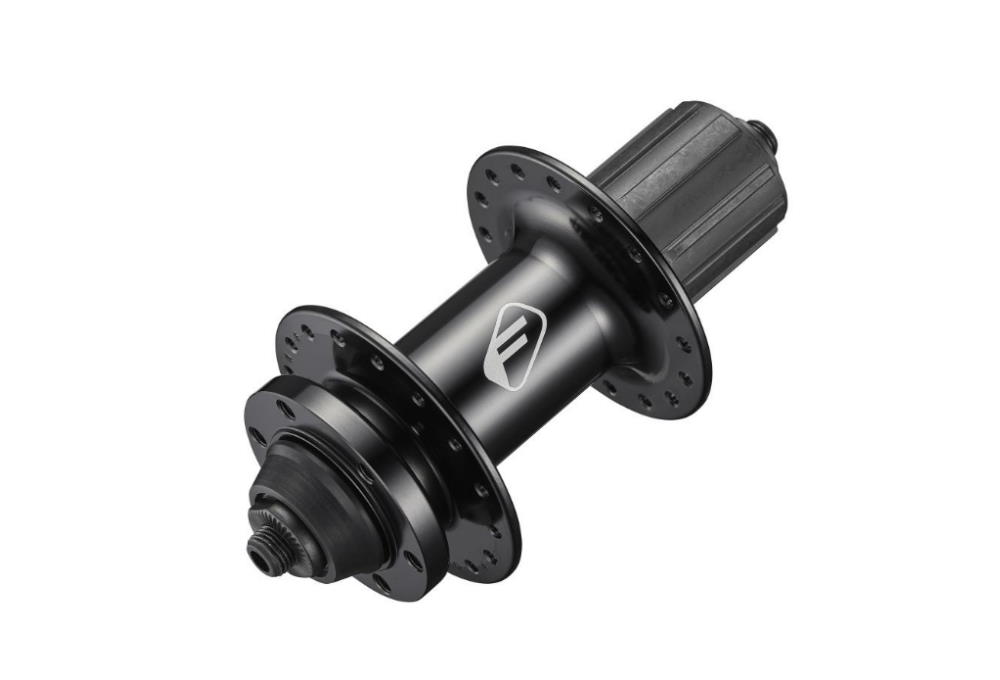

QR TYPE SERIES 6 BOLT

  •   QR TYPE
      DC-140 DC-38
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 140G 380G




    DC-140
    DC-38

  •   QR TYPE
      DC-91 DC-32
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 190G 429G




    DC-91
    DC-32

  •   QR TYPE
      RX-25 RX-26
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 180G 415G




    RX-25
    RX-26

  •   QR TYPE
      DC-20LW DC-22LW
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 274G 446G




    DC-20LW
    DC-22LW

  •   QR TYPE
      DC-20 DC-22
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 274G 486G




    DC-20
    DC-22

QR TYPE SEIRES CENTER LOCK

  •   CENTER LOCK
      CL-25 CL-26
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 175G 400G




    CL-25
    CL-26

  •   CENTER LOCK
      CL-51 CL-52
    SPECIFICATION
    F/R F R
    HOLE COUNT 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 199G 413G




    CL-51
    CL-52

NON DISC SERIES

  •   NON DISC
      OV-91 OV-32S
    SPECIFICATION
    F/R F R
    HOLE COUNT 32/36H 32/36H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 130G 402G




    OV-91
    OV-32S

  •   NON DISC
      OV-31 OV-32
    SPECIFICATION
    F/R F R
    HOLE COUNT 32/36H 32/36H
    GAUGE 14 14
    O.L.D. 100MM 135MM
    AXLE LENGTH 108MM 145MM
    QR N/A N/A
    WEIGHT 160G 418G




    OV-31
    OV-32

  •   NON DISC
      FM-31R FM-21
    SPECIFICATION
    F/R R F
    HOLE COUNT 32/36H 32/36H
    GAUGE 14 14
    O.L.D. 135MM 100MM
    AXLE LENGTH 145MM 108MM
    QR N/A N/A
    WEIGHT 258G 154G




    FM-31R
    FM-21

  •   NON DISC
      FM-32
    SPECIFICATION
    F/R R
    HOLE COUNT 32/36H
    GAUGE 14
    O.L.D. 135MM
    AXLE LENGTH 145MM
    QR N/A
    WEIGHT 404G




    FM-32

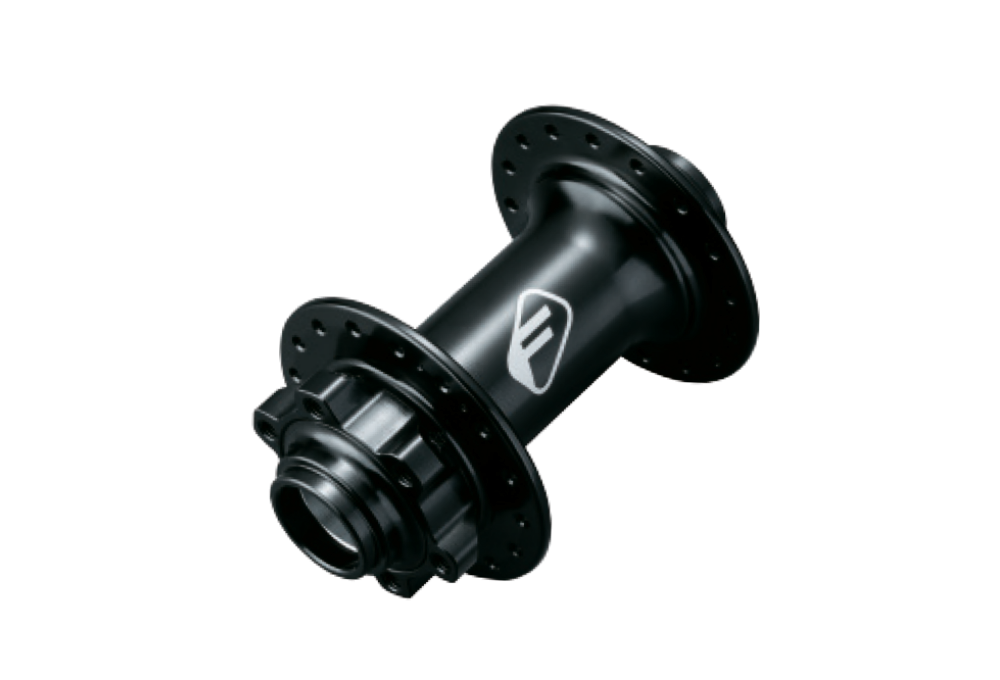

DOWN HILL SERIES

  •   DOWN HILL
      DHL-92 DHG-150
    SPECIFICATION
    F/R F R
    HOLE COUNT 32/36H 32/36H
    GAUGE 14 14
    O.L.D. 110M 150MM
    AXLE LENGTH Ø20 Ø12
    QR N/A N/A
    WEIGHT 215G 430G




    DHL-92
    DHG-150

  •   DOWN HILL
      DHG-157
    SPECIFICATION
    F/R R
    HOLE COUNT 32/36H
    GAUGE 14
    O.L.D. 157MM
    AXLE LENGTH Ø12
    QR N/A
    WEIGHT 440G




    DHG-157

FAT HUB SERIES

  •   FAT HUB
      SL-150
    SPECIFICATION
    F/R F
    HOLE COUNT 32H
    GAUGE 14
    O.L.D. 150MM
    AXLE LENGTH Ø15
    QR N/A
    WEIGHT 217G




    SL-150

  •   FAT HUB
      DHL-177 DHL-1771
    SPECIFICATION
    F/R R R
    HOLE COUNT 32H 32H
    GAUGE 14 14
    O.L.D. 177MM 177MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 362G 330G




    DHL-177
    DHL-1771

  •   FAT HUB
      DHL-197 DHL-1971
    SPECIFICATION
    F/R R R
    HOLE COUNT 32H 32H
    GAUGE 14 14
    O.L.D. 197MM 197MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 406G 374G




    DHL-197
    DHL-1971

  •   FAT HUB
      DC-135 DC-150
    SPECIFICATION
    F/R F F
    HOLE COUNT 28/32 32H
    GAUGE 14 14
    O.L.D. 135MM 150MM
    AXLE LENGTH 145MM Ø15
    QR N/A N/A
    WEIGHT 243G 288G




    DC-135
    DC-150

  •   FAT HUB
      DHT-177 DHT-1771
    SPECIFICATION
    F/R R R
    HOLE COUNT 32H 32H
    GAUGE 14 14
    O.L.D. 177MM 177MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 432G 390G




    DHT-177
    DHT-1771

  •   FAT HUB
      DHT-197 DHT-1971
    SPECIFICATION
    F/R R R
    HOLE COUNT 32H 32H
    GAUGE 14 14
    O.L.D. 197MM 197MM
    AXLE LENGTH Ø12 Ø12
    QR N/A N/A
    WEIGHT 460G 420G




    DHT-197
    DHT-1971
