STRAIGHT PULL SERIES

  •   STRAIGHT PULL
      SP-60 SP-201
    SPECIFICATION
    F/R F R
    HOLE COUNT 18/20H 24H
    GAUGE 14 14
    O.L.D 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 60G 208G

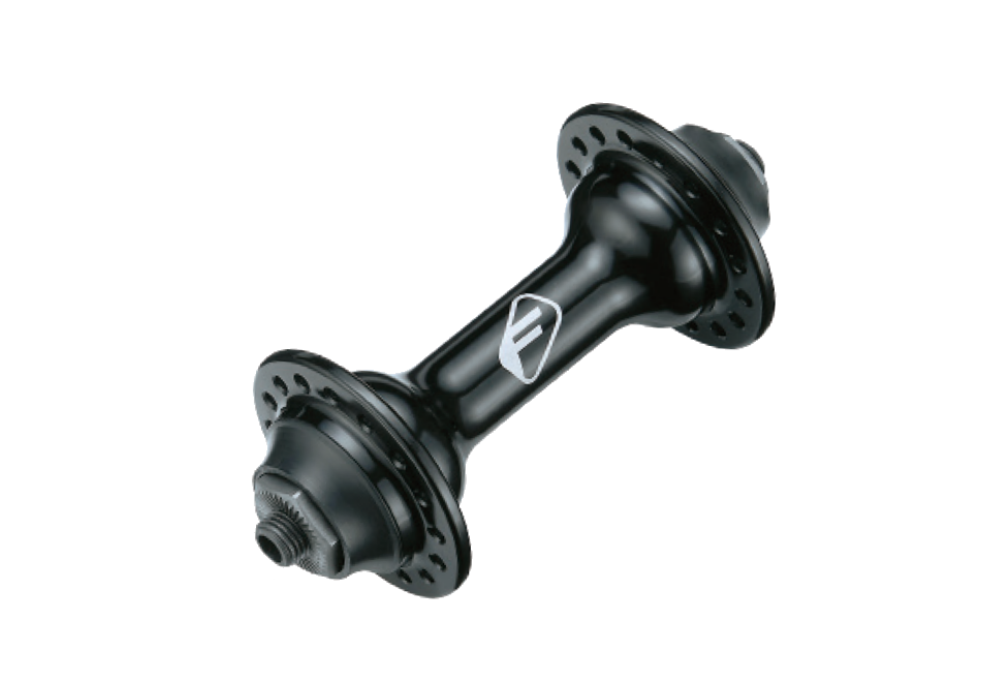

    SP-60

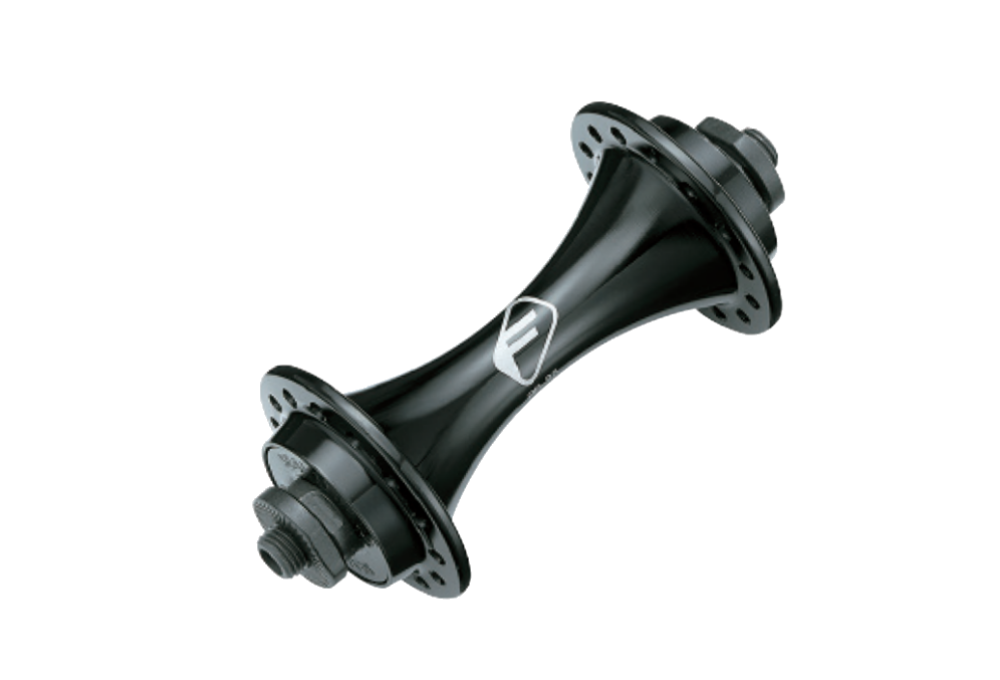

    SP-201

  •   STRAIGHT PULL
      SP-68 SP-230
    SPECIFICATION
    F/R F R
    HOLE COUGE 18H(RADIAL) 24H(1:1,RADIAL X2)
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 106G 265G




    SP-68
    SP-230

J-BEND SERIES

  •   J-BEND SERIES
      RB-68 RL-241
    SPECIFICATION
    F/R F R
    HOLE COUGE 24/28H 24H/28H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A NA
    WEIGHT 68G 240G




    RB-68
    RL-241

  •   J-BEND SERIES
      RB-91 RB-3811
    SPECIFICATION
    F/R F R
    HOLE COUGE 20/24H/28H 24/28H/32H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 99G 302G




    RB-91
    RB-3811

  •   J-BEND SERIES
      RB-25 RB-26
    SPECIFICATION
    F/R F R
    HOLE COUGE 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 145G 373G




    RB-25
    RB-26

  •   J-BEND SERIES
      RB-2611
    SPECIFICATION
    F/R R
    HOLE COUGE 28/32H
    GAUGE 14
    O.L.D. 130MM
    AXLE LENGTH 140MM
    QR N/A
    WEIGHT 373G




    RB-2611

  •   J-BEND SERIES
      RB-56 RB-5711
    SPECIFICATION
    F/R F R
    HOLE COUGE 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 145G 372G




    RB-56
    RB-5711

  •   J-BEND SERIES
      RB-51 RB-52
    SPECIFICATION
    F/R F R
    HOLE COUGE 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 152G 377G




    RB-51
    RB-52

  •   J-BEND SERIES
      RB-31 RB-32
    SPECIFICATION
    F/R F R
    HOLE COUGE 28/32H 28/32H
    GAUGE 14 14
    O.L.D. 100MM 130MM
    AXLE LENGTH 108MM 140MM
    QR N/A N/A
    WEIGHT 156G 388G




    RB-31
    RB-32

  •   J-BEND SERIES
      RB-32C
    SPECIFICATION
    F/R R
    HOLE COUGE 28/32H
    GAUGE 14
    O.L.D. 130MM
    AXLE LENGTH 140MM
    QR N/A
    WEIGHT 460G




    RB-32C

6 BOLT DISC SERIES

CENTER LOCK SERIES
